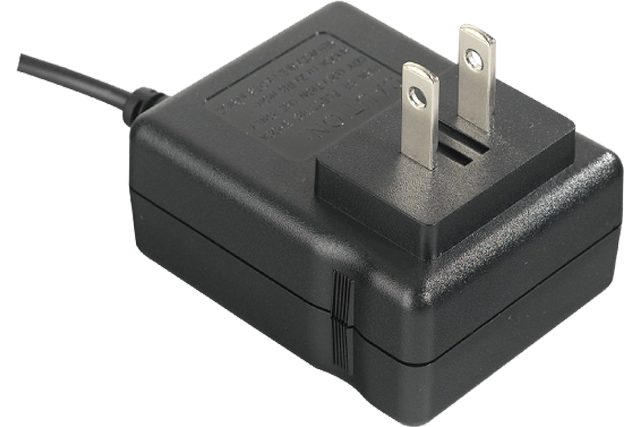

UNUDLN3018
|
UNUDUL3018 is an 18W AC/DC Power Adapter. It is a universal type and can be used with AV equipment, IoT-related devices, network equipment, inspection jigs, sensors, and various other devices. It is a high-efficiency AC/DC Power Adapter with a compact design that complies with DOE VI standards. Product series name:UNUDLN3018 |
|
Products details
| Size | L:64.0 W:50.0 H:34.8/mm |
|---|---|
| AC Input Rating | 90V~264V |
| DC Output Rating |
|
| Safety |
|
If you are looking for products other than the above specifications, please contact our sales department.
Contact form
The UNUDxN 18W Series is a wall-mount AC/DC adapter (18W, DC plug output) for I.C.T./AV equipment featuring a GaN-MOSFET. It complies with safety standards 62368-1 and PSE Appendix 8, and is available in six models ranging from 5.0V to 24.0V. Eight plug types are available: U/L/Y/Z/R/K/E/A, supporting global Products deployment.
By adopting the next-generation power semiconductor GaN (Gallium Nitride) MOSFET, it achieves a maximum efficiency of 85.01% and no-load power consumption of 0.1W. It complies with Energy Efficiency Level VI (ErP/DoE) and DOE VII Draft, delivering 18W output in a compact enclosure while reducing heat generation compared to conventional silicon devices.
| UNIFIVE is chosen because: As a power supply manufacturer with over 35 years of development experience, we provide comprehensive support from specification review for mass production, certification acquisition, production launch, to post-mass production follow-up. Based on standard products, we offer flexible supply from small-lot prototyping and evaluation to small- and medium-scale production, as well as large-volume manufacturing. We also support semi-custom solutions and assist with power supply selection from the specification planning stage for mass production adoption. |
Key Features
1) GaN-MOSFET with Maximum Efficiency of 85.01% and DOE VII Draft Compliance
Equipped with a next-generation power semiconductor GaN (Gallium Nitride) MOSFET, achieving a maximum efficiency of 85.01% (19V model). In addition to Energy Efficiency Level VI (ErP/DoE), EU Commission Regulation 2019/1782, and DOE 10 CFR Part 429 and 430, it also complies with the DOE VII Draft (next-generation energy-saving standard), ensuring readiness for future regulatory enhancements. It maintains low standby power consumption of 0.1W while delivering 18W output in a compact enclosure.
2) Compliant with 62368-1 and PSE Appendix 8 - Standard Products for I.C.T./AV Equipment
A standard Products compliant with the ICT/AV equipment safety standard 62368-1 and Japan's Electrical Appliance and Material Safety Law PSE Appendix 8. Suitable for powering a wide range of ICT and AV equipment including audio devices, video equipment, information and communication devices, and AV peripherals. LPS certified. Please contact our sales department for detailed certification status of each model.
3) Six Models from 5.0V to 24.0V with +/-5% Output Accuracy
Available in six output voltage models: 5.0V/9.0V/12.0V/15.0V/19.0V/24.0V, supporting applications from low-voltage logic systems to 19V laptop systems and 24V industrial equipment. All models feature +/-5% output accuracy and 0.1W no-load power consumption. Ripple is 150mV for the 5V model and 200mV for others (300mV for 24V only), ensuring stable output characteristics.
4) EMC Compliance for ICT Equipment (EN55035, FCC Part15-B, VCCI-B, BS EN 55032)
Compliant with ICT/AV equipment immunity standards EN55035 and BS EN 55035. Emission standards include FCC Part15-B, CE (EN/CISPR55032-B), VCCI-B and BS EN 55032. Comprehensive immunity compliance including EN61000-4-2 to 4-6, 4-8, and 4-11 ensures electromagnetic resilience required for ICT/AV accessory power supplies.
5) Eight Plug Types, Universal Input, and Three Protection Circuits
Available in eight plug types: U/L/Y/Z/R/K/E/A, supporting global Products bundling and market deployment. Supports universal input of AC90-264V for worldwide use. Equipped with three protection circuits: short circuit, overvoltage, and overcurrent protection to ensure safety of both the connected device and the adapter.
Main Specifications
| Series Name | UNUDxN 18W Series |
| Product Category | I.C.T./AV AC/DC Adapter (Wall-Mount, DC Plug Output, GaN-MOSFET Equipped) |
| Rated Output | 18W |
| Key Features | GaN-MOSFET, Maximum Efficiency 85.01%, DOE VII Draft Compliant, Six Models from 5.0-24.0V, Eight Plug Types, 0.1W No-Load |
| Applicable Equipment | Audio, Video, and Information Communication Technology Equipment (ICT/AV Equipment) |
| Operating Temperature Range | 0-40C (Natural Air Cooling, Sea Level) |
| Safety Standards | 62368-1, PSE Appendix 8 (Contact sales for model-specific details) |
| Energy Efficiency | Energy Efficiency Level VI (ErP/DoE), EU Commission Regulation 2019/1782, DOE 10 CFR Part 429 and 430, DOE VII Draft Compliant |
| Emission | FCC Part15-B/CE EN(CISPR)55032-B/VCCI-B/BS EN 55032 |
| Immunity | EN55035/BS EN 55035 (Including EN61000-4-2 to 4-6, 4-8, 4-11) |
| Protection Circuits | Short Circuit Protection (SCP)/Overvoltage Protection (OVP)/Overcurrent Protection (OCP) |
| Operating Environment | Input: AC100-240V (Range: AC90-264V), 50/60Hz (Range: 47-63Hz)/Storage Temperature: -20-65C (Natural Air Cooling, Sea Level)/Operating & Storage Humidity: 5-95%RH (No Condensation) |
| Reference: Output Voltage, Current, Efficiency | 5.0V 3.0A (Efficiency 81.39%, Ripple 150mV)/9.0V 2.0A (Efficiency 85.00%, Ripple 200mV)/12.0V 1.5A (Efficiency 85.00%, Ripple 200mV)/15.0V 1.2A (Efficiency 85.00%, Ripple 200mV)/19.0V 0.95A (Efficiency 85.01%, Ripple 200mV)/24.0V 0.75A (Efficiency 85.00%, Ripple 300mV) (Output Accuracy +/-5%, No-Load Power Consumption 0.1W) |
| Reference: Plug Type & Dimensions | U: 63.90x49.50x29.50mm/L: 64.00x50.00x34.80mm/Y: 63.90x49.50x29.50mm/Z: 64.00x50.00x34.80mm/R: 64.50x50.20x47.90mm/K: 64.50x50.20x36.40mm/E: 64.50x50.20x47.90mm/A: 64.00x55.00x36.0mm |
| Other | LPS Certified, RoHS 2 Compliant |
Semi-Custom Support
Please feel free to contact us for specification confirmation, quotations, or sample requests. You can view examples of semi-custom solutions on our customization case page.
